How to setup Windows guest VirtIO block driver on Windows Server 2003

Introduction

VirtIO block driver can be used either as a system (boot) or non-system disk. However, the installation procedure for these two different scenarios is slightly different.

System disk installation procedure

QEMU command line options

First of all, a VM needs to be started with the VirtIO block device and boot options enabled:

-drive file=/image_path/image_name,if=virtio,boot=on

In addition, a virtual floppy disk with correct Windows drivers must be specified:

-fda /floppy_image_path/floppy_image_name

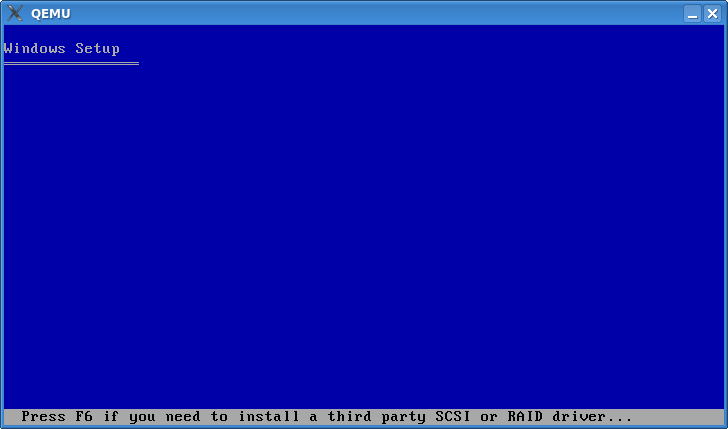

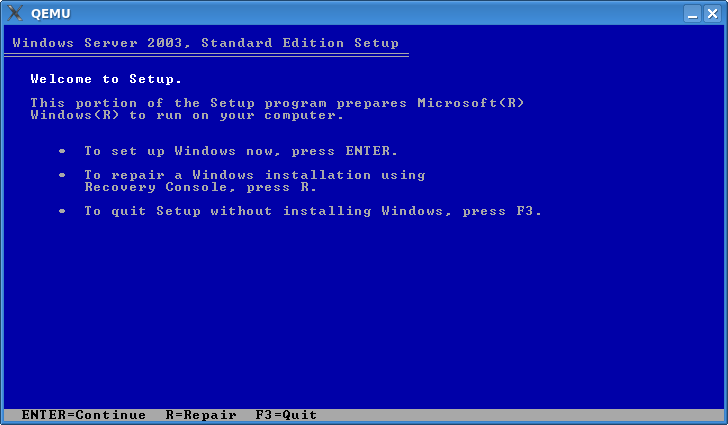

Boot from the CD and press "F6" to install a third party driver

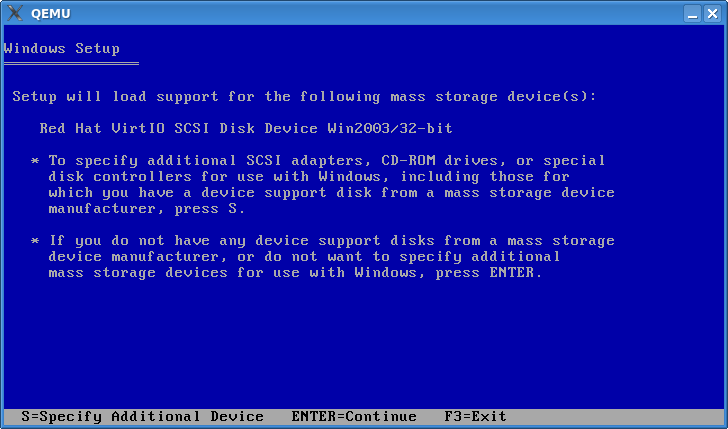

Press "S" to specify additional device


Select correct architecture and press "ENTER"


Press "Enter" to continue


All set. Press "Enter" and continue with the normal installation procedure



Non-System disk installation procedure

QEMU command line options

Run VM with the new VirtIO block device by adding the following options:

-drive file=/image_path/image_name,if=virtio,boot=off and -fda /floppy_image_path/floppy_image_name

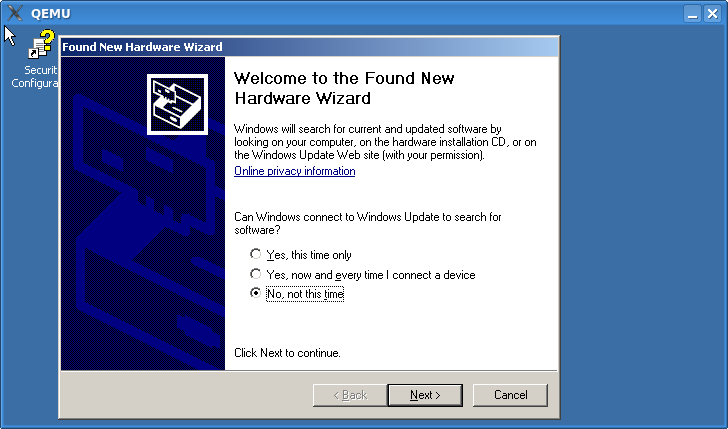

Upon the Windows guest restart the New Hardware Wizard dialog will appear

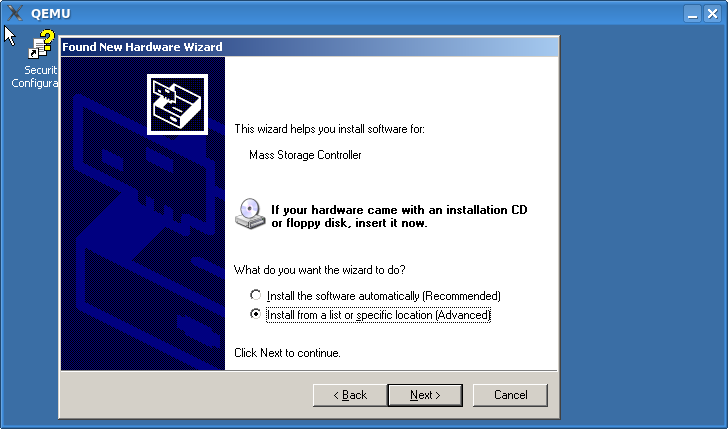

Select "Install from the list or specific ..." option and press "Next"

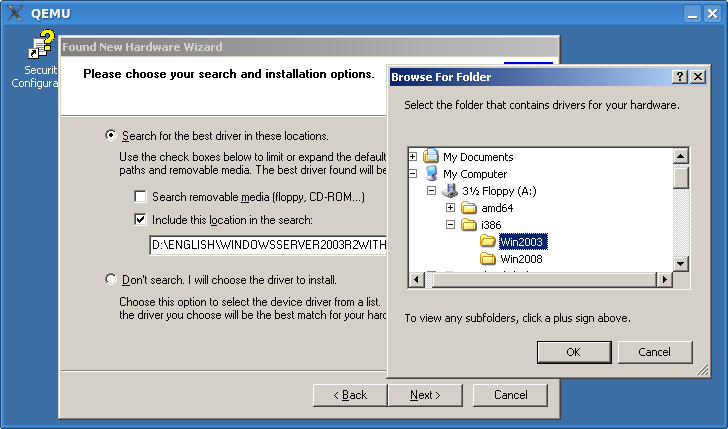

Select an appropriate location and press "OK" button

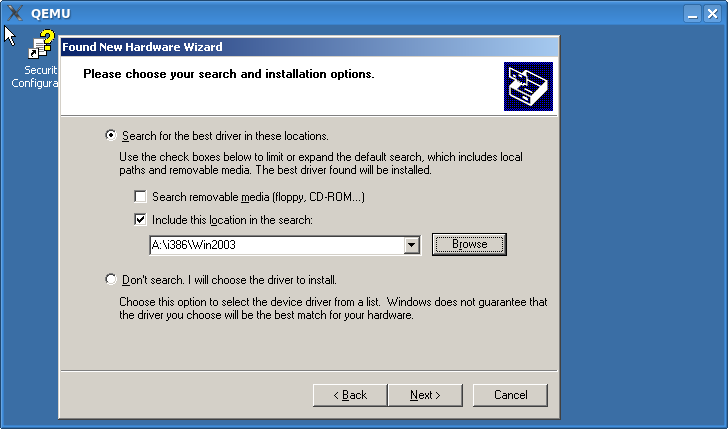

Press "Next" button

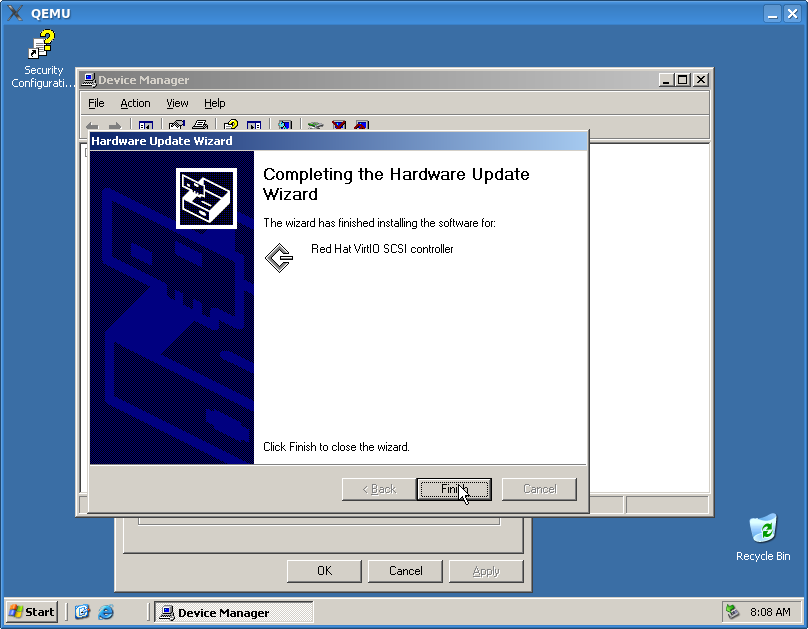

Press "Finish" upon installation completion


Verify installation

Go to "Device Manager" and check to see that "Red Hat VirtIO SCSI controller" appears under "SCSI and RAID controllers" category. Snapshot26.png

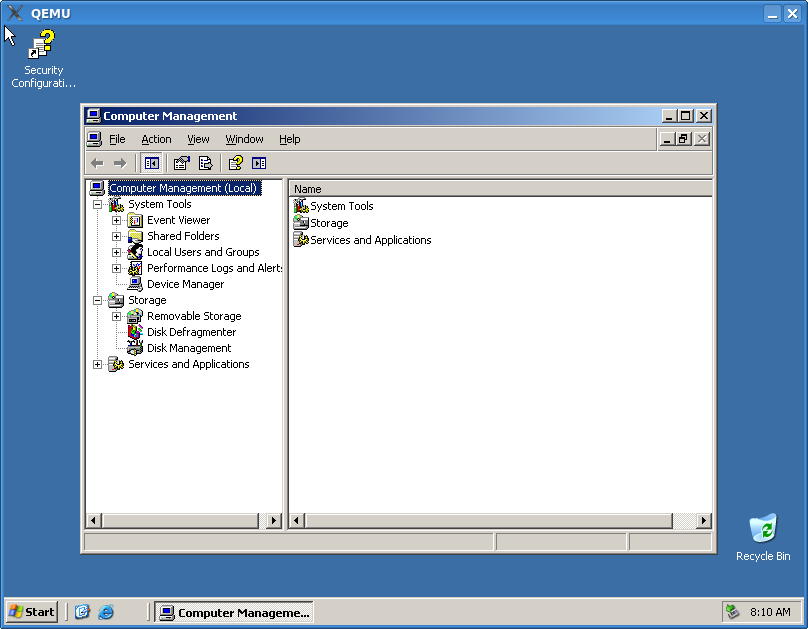

Go to "Start" -> "Administrative Tools" -> "Computer Management"
and click "Disk Management".

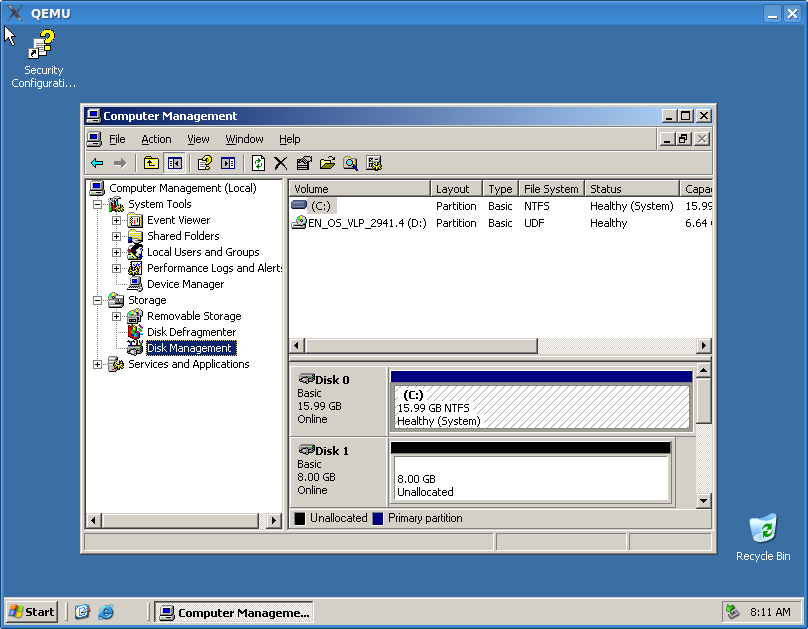

Go to "Start" -> "Administrative Tools" -> "Computer Management" and click "Disk Management".

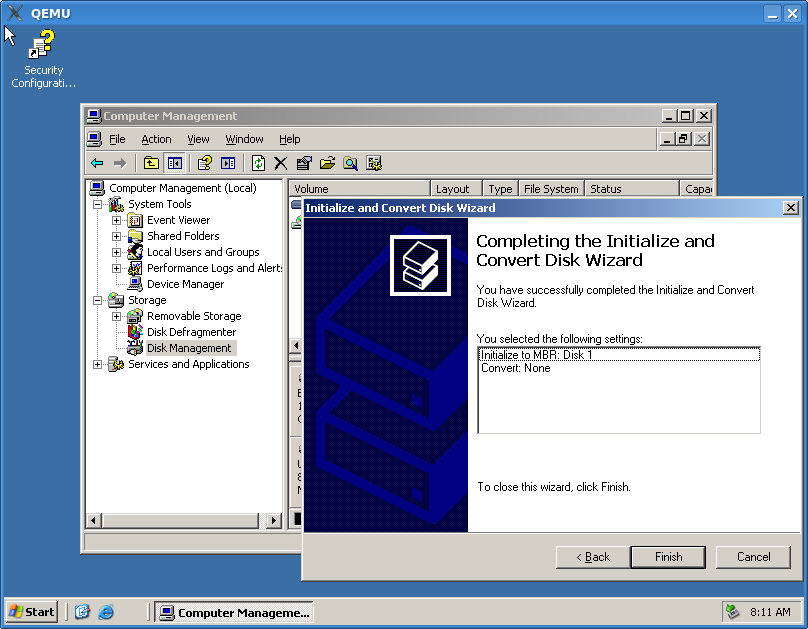

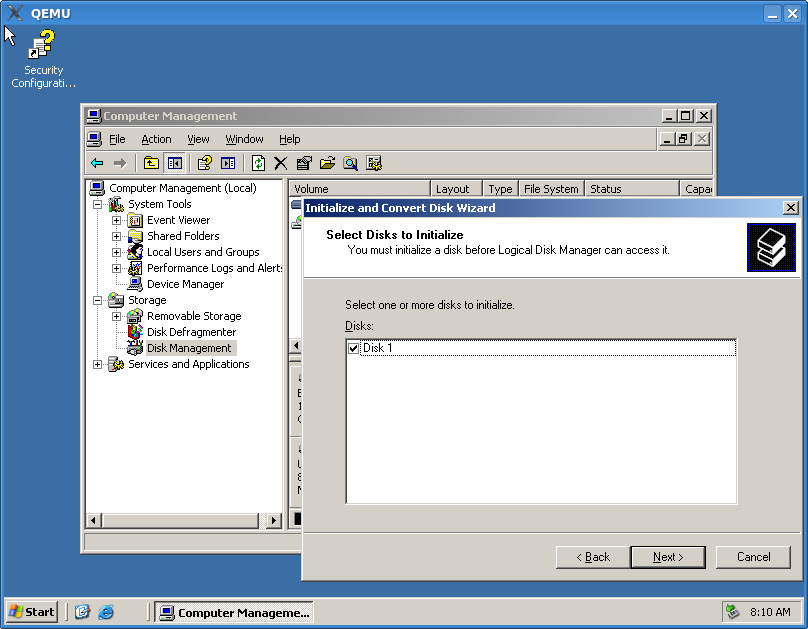

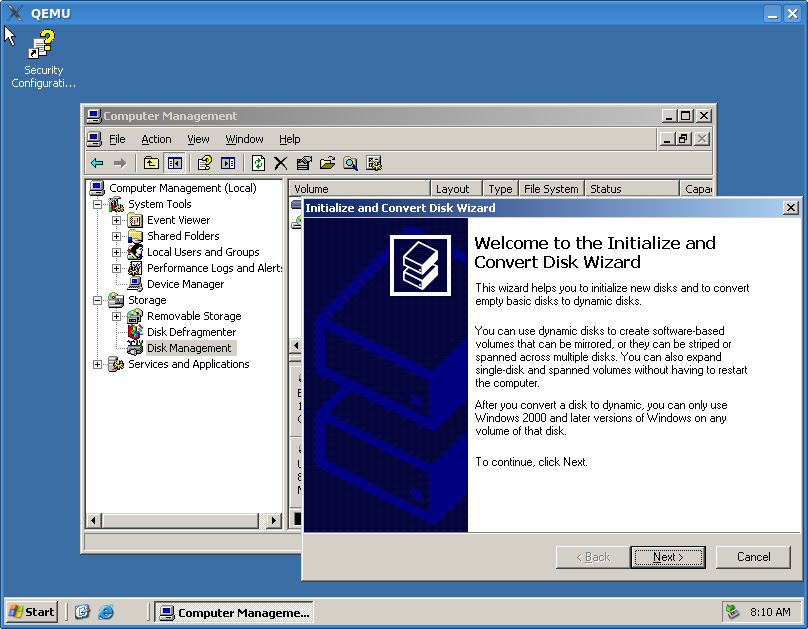

Follow to the "Initialize and Convert Disk Wizard" prompt





Right-click on the new disk and start the "New Partition Wizard"



Create a primary partition

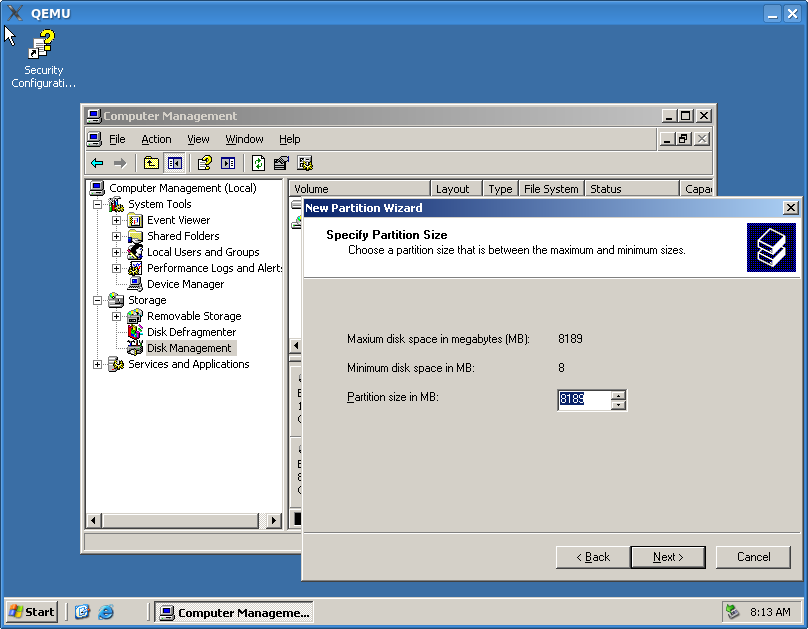

If it is necessary, adjust partition size,

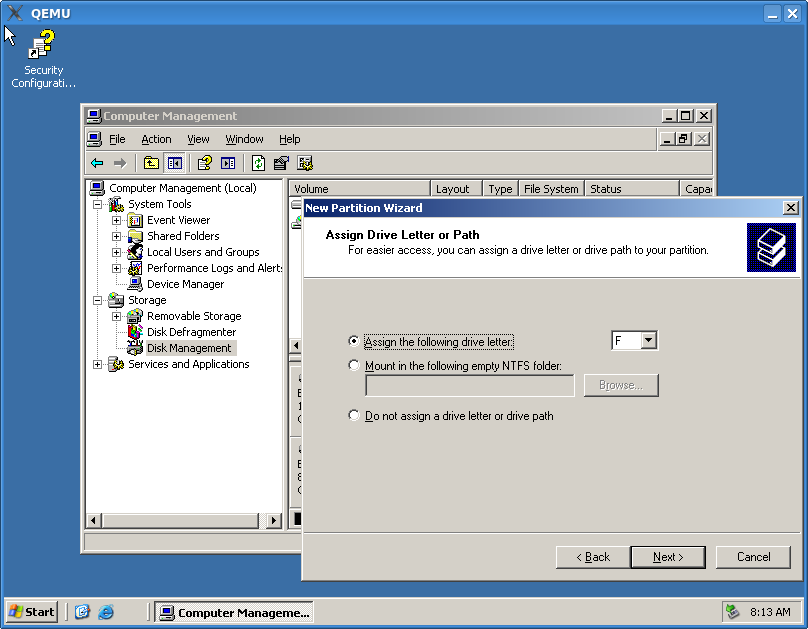

a drive letter,

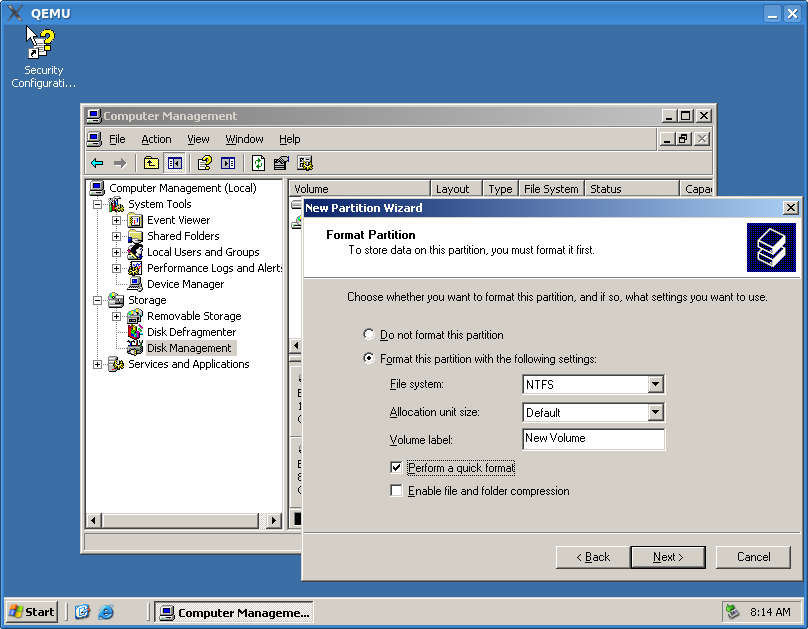

file system type, allocation unit size and volume label.

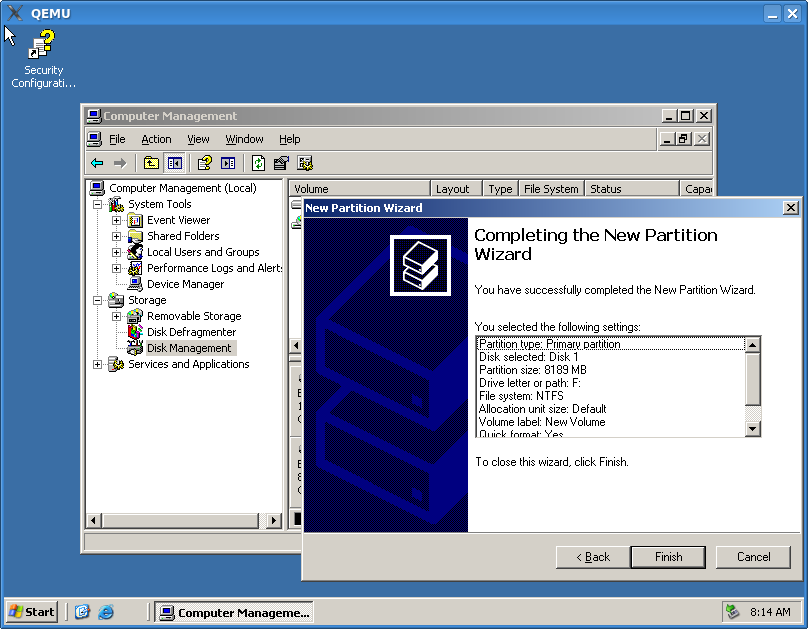

Check that everything is fine and press "Finish" button

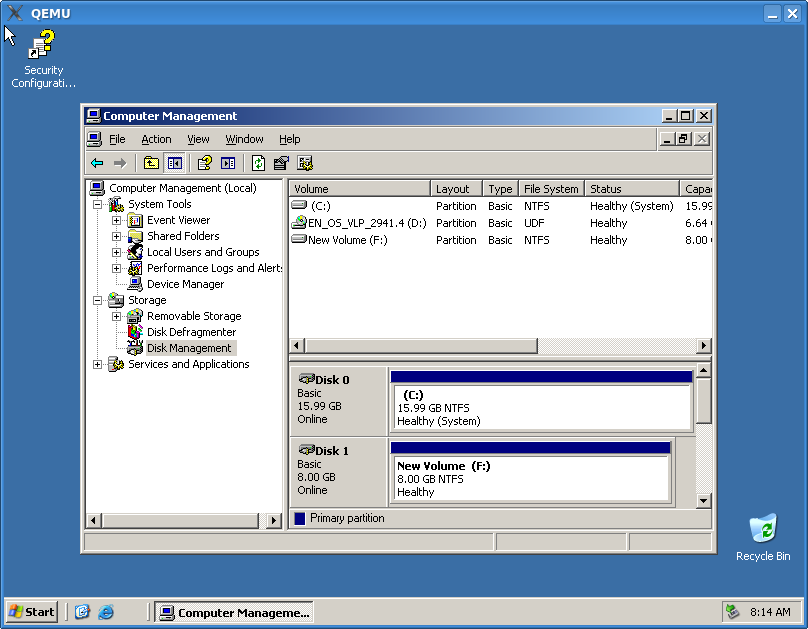

The new partition will be marked as "Healthy"

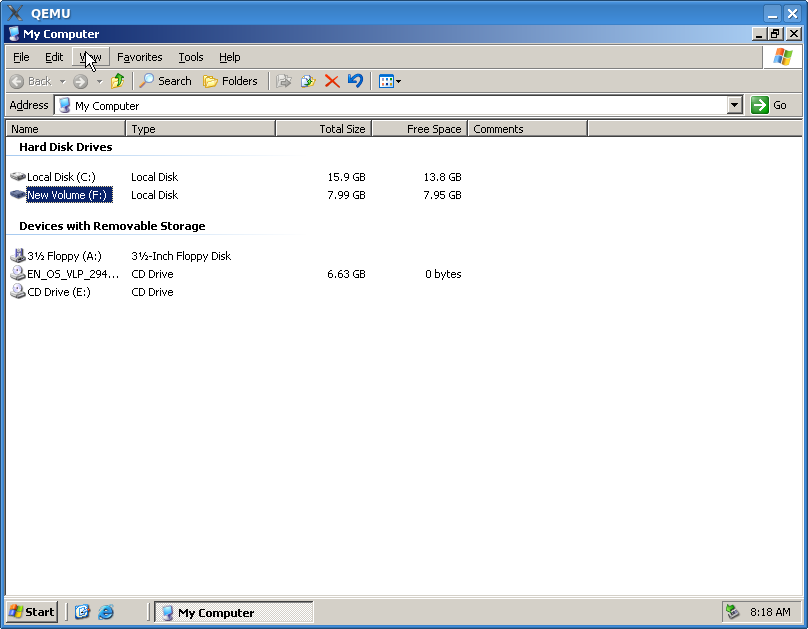

and accessible under "My Computer" folder.
